Parameter

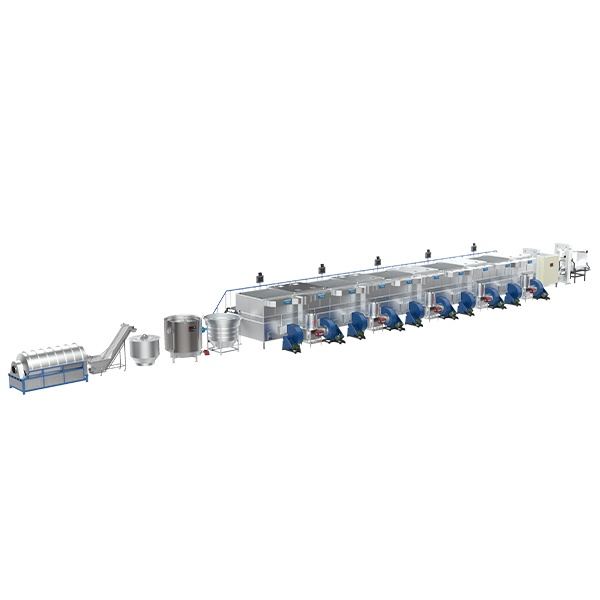

Technical Parameters Of Peanut Production Line With Daily Output Of 12 Tons | |||
| Model | Overall Size | Power | Air Consumption |
| Peanut Production Line With Daily Output Of 12 Tons | 55000*6000*7000mm | 110Kw/h | ≤90m3/h |
| Capacity | Total Volume | ||
| Daily Output 12T | 60m3 | ||
Technical Parameters of Single Group Parallel Grilling Pool | |||
| Model | Overall Size | Power | Air Consumption |
| Single Group Yuanyang Grilling Pool | 5500 (11000)*5900*3550mm | 16.5Kw | ≤14m3 /h |
| Capacity | Weight | Single Pool Volume | |
| 2.4T/day (2T×40h×2) | 4.8t | 6m3 | |
Overview
1. Automatic and manual dual production modes, which can be switched at will.
2. There are 16 temperature measurement points distributed in the middle of the material, and the discharging time is set through data, replacing the manual experience production method.
3. The automatic transfer design of high-temperature exhaust gas not only saves energy, but also reduces the amount of exhaust emissions by one time.
4. The Yuanyang roasting pool is also equipped with an automatic cooling design. The roasted melon seeds and peanuts are cooled and exited from the pool, saving investment in space and cooling equipment.
5. Touch-type integrated control, beautiful appearance, key parts of material discharging and flame combustion, also equipped with video display function.
6. This production line can realize universal production of melon seeds and peanuts.
7. We solemnly promise that the Yuanyang Grilling Pool saves 30% more energy than traditional technology.

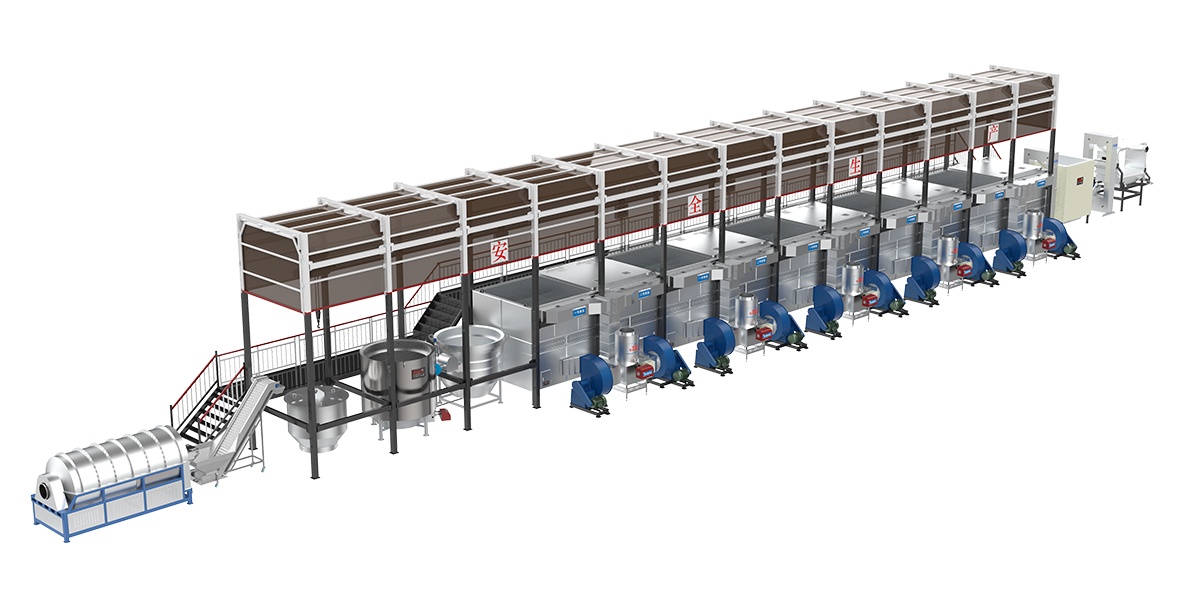

Truss Type Mode Of Production
1. Adopting a closed tunnel monorail design, the steam generated during production is collected and discharged at the first time, and the steam problem is solved with minimal power.
2. The truss production model can integrate cooking and baking to form a production line, which greatly improves the degree of automation, eliminates the need for driving and reduces workshop manufacturing costs.
3. The truss mode not only processes steam, but also recovers dust, reduces the smell of essence, and effectively protects the electrical equipment in the workshop.
4. Compared with using a driving machine, investment and production costs are greatly reduced.
Application
Sunflower Seeds
Peanuts
